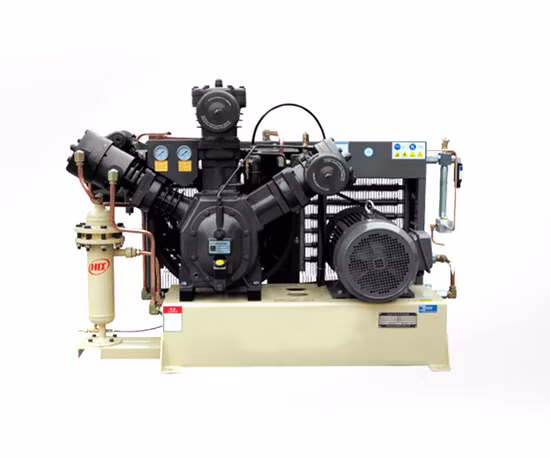

Air Compressed System for Blowing Pet Bottle

Basic Info.

Model NO.	36wh-1.0/30
Refrigerant Type	Freon
Motor	IP54 IEC, Siemens
Cooling	Inter-Cooler, After-Coolerair Cooling
Lubricant Protection	Low Oil Level Protection Against Insufficient Lubr
Bearing	SKF
Centrifugal Unloading	Release From Inter-Cooler and Cylinder
Pressure Switch	Danfuss From Denmark
Conductor	Schneider From France
Pressure Valve	Hoerbiger From Germany
Crankcase	100% Cast Iron Material, Easy Accessible
Cylinder	100% Cast Iron Material
Transport Package	Wooden Case
Specification	ce
Trademark	hengda
Origin	Nanjing
HS Code	84143019
Production Capacity	15sets/Month

Product Description

Air Compressed System for blowing PET bottle
1. Main data

Model	Air capacity (M3/min)	Working pressure (Bar)	Power(Kw)	Speed(r.p.m)	Weight(Kg)
VH-0.7/30	0.7	30bar	7.5	680	310
WH-1.0/30	1.0		11	600	430
WH-1.2/30	1.2		15	760	350
WH-1.5/30	1.5		18.5	790	520
WH-2.0/30	2.0		22	670	610
WH-2.35/30	2.35		25	760	620
2-WH-3.0/30	3.0		2*18.5	790	1150
3-WH-3.6/30	3.6		3*15	700	1580
VH-0.3/40	0.3	40BAR	5.5	500	290
WH-1.0/40	1.0		11	790	470
52SH-2.0/40	2.0		22	735	660
49SH-2.6/40	2.6		25	625	900
49SH-3.0/40	3.0		30	695	920
2-49SH-6.0/40	6.0		2*30	695	2100
4-WH-4.0/40	4.0		4*11	790	2400
6-WH-6.0/40	6.0		6*11	790	3600

If these are not what you need, you can give us the exhaust pressure, displacement, usage and some other requirements of the air compressor, We will custom for you.

2. Feature of air compressor:
1. Light alloy piston effectively reduces weight and reduces mechanical power consumption.
2.Cast iron cylinder heads, and independent seat enhance the life of the equipment.
3. Equipped with the king of air valve "Herbiger" automatic efficient valve they make the equipment big capacity, more action, high efficiency, long life service.
4. Special design flywheel, V belt drive reduce the operating noise
6.Rotating components adopt two famous rolling bearings, which ensure the stable operation and greatly reduce the wear and tear of the bearing.

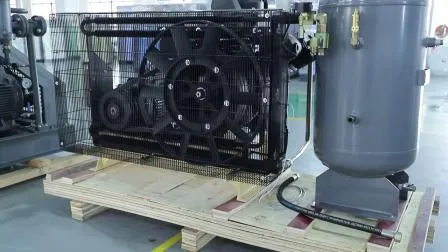

Packaging & Shipping

Packaging Details:	Wooden case package
Delivery Detail:	15 working days

Our Services
If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.

Attention:Workers must operate the machines according to the design of the machine. Faygo Machinery will not be responsible for accidents which are caused by improper operation of workers.
